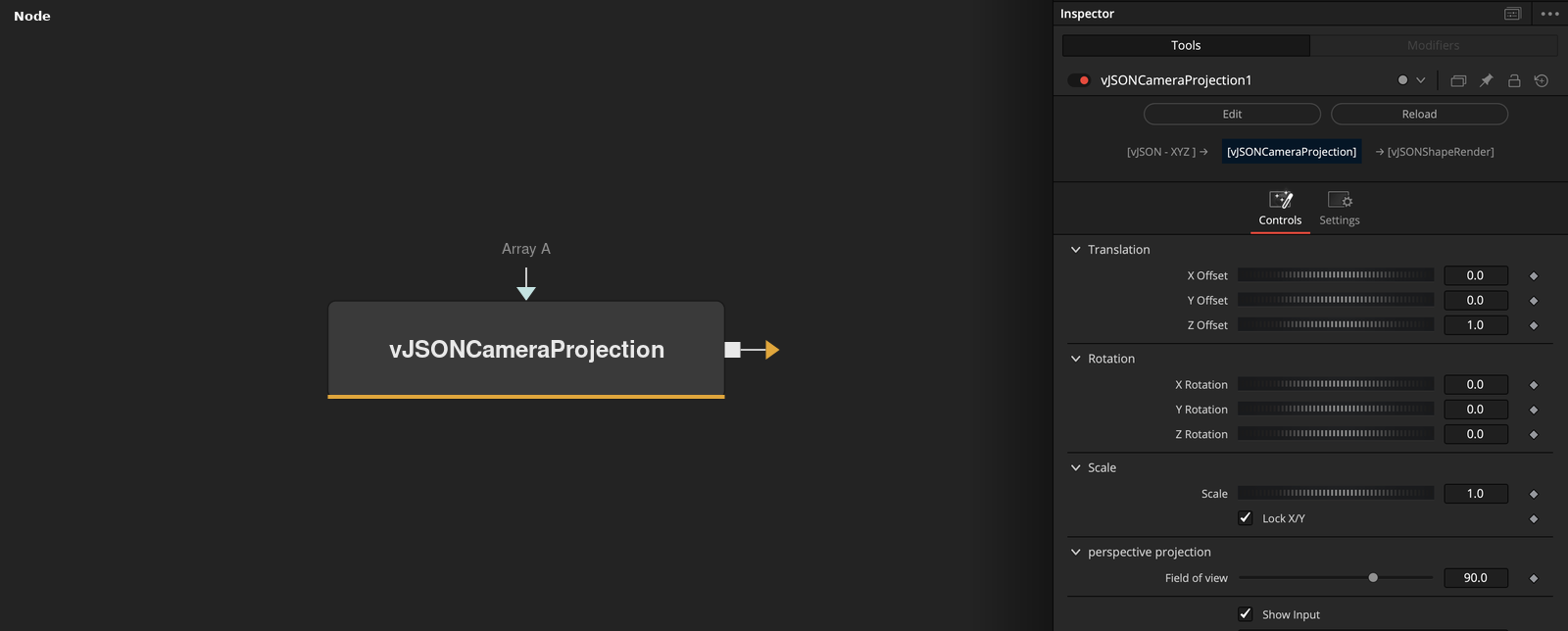

vJSONCameraProjection
Transforms arrays using a perspective projection matrix
Mograph / JSONJSONScriptValArray
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| X Offset | Float | — | — |
| Y Offset | Float | — | — |
| Z Offset | Float | 1.0 | — |
| Rotation Order | Float | XYZ | — |
| X Rotation | Float | — | — |
+13 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Y Rotation | Float | — | — |
| Z Rotation | Float | — | — |
| Lock X/Y | Integer | 1 | — |
| X Scale | Float | 1.0 | — |
| Y Scale | Float | 1.0 | — |
| Field of view | Float | 90.0 | — |
| Screen aspect ratio | Float | 16 / 9 | — |
| Near clipping plane | Float | 0.1 | — |
| Far clipping plane | Float | 1000 | — |
| X Shear | Float | 0.0 | — |
| Y Shear | Float | 0.0 | — |
| Show Input | Integer | 1.0 | — |
| Array A | DATATYPE | — | — |
Example Connections
- Example 1
vJSONFromXYZ.Points -> vJSONCameraProjection.ArrayA
vJSONCameraProjection.Output -> vJSONShapeRender.JSONPoint
Background.Output -> vJSONShapeRender.Input
