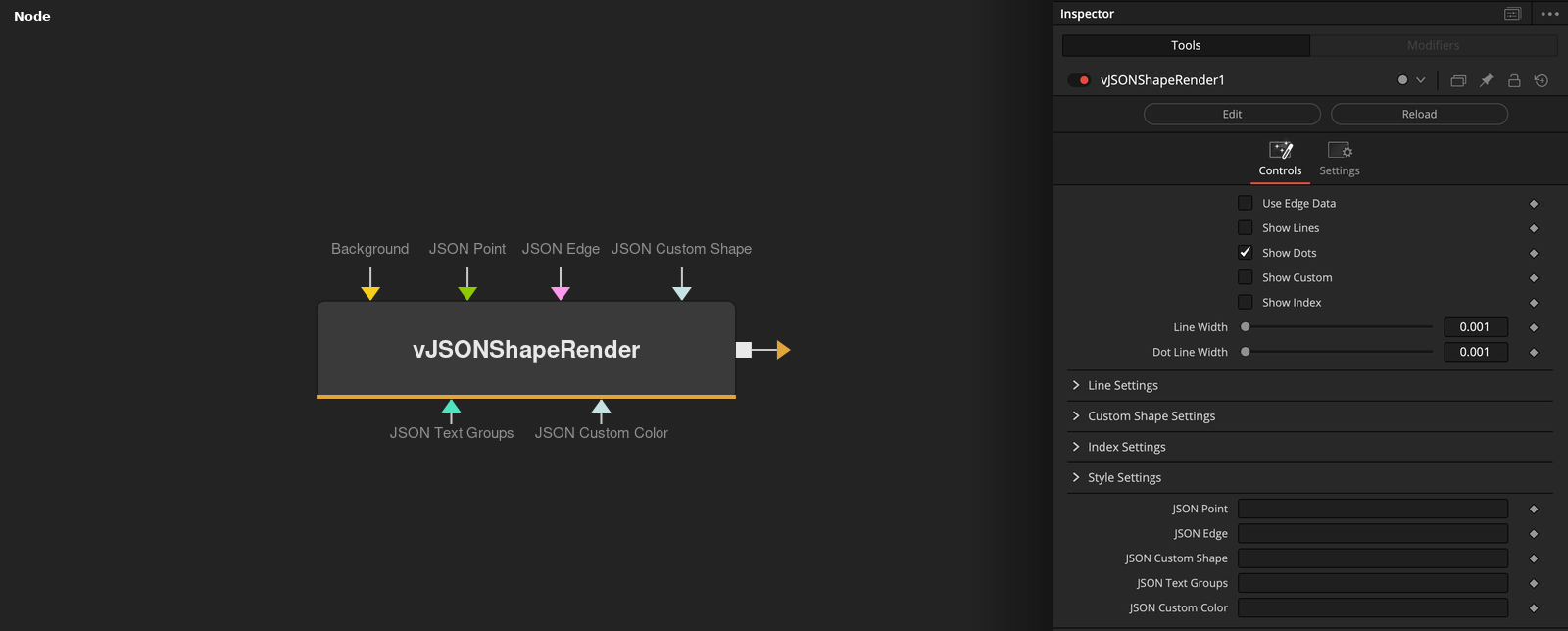

vJSONShapeRender
Create a polygon dot shapes from a JSON based Lua table of XY point pairs
Mograph / JSONJSONScriptValArray
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Separator_1 | Float | — | — |
| Use Edge Data | Integer | 0 | — |
| Show Lines | Integer | 0 | — |
| Show Dots | Integer | 1 | — |
| Show Custom | Integer | 0 | — |
+64 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Show Index | Integer | 0 | — |
| Line Width | Float | 0.001 | — |
| Dot Line Width | Float | 0.001 | — |
| Connect Text Groups | Integer | 0 | — |
| Render Outline Lines | Integer | 1 | — |
| Close Edge Loops | Integer | 1 | — |
| Max XY Line Distance | Float | 0.0 | — |
| Separator_2 | Float | — | — |
| Red | Float | 0 | — |
| Green | Float | 1 | — |
| Blue | Float | 1 | — |
| Alpha | Float | 1.0 | — |
| Hide Default Dots | Integer | 0 | — |
| Render Outline Dots | Integer | 0 | — |
| Dot Sides | Integer | 6 | — |
| Dot Radius | Float | 0.01 | — |
| Dots Scale | Float | 1.0 | — |
| Separator_3 | Float | — | — |
| Color | Float | Default | — |
| Red | Float | 1.0 | — |
| Green | Float | 0.0 | — |
| Blue | Float | 0.5 | — |
| Alpha | Float | 1.0 | — |
| Separator_Line | Float | — | — |
| Color | Float | Default | — |
| Red | Float | 0 | — |
| Green | Float | 1 | — |
| Blue | Float | 1 | — |
| Alpha | Float | 1.0 | — |
| Render Outline Shape | Integer | 0 | — |
| Render Outline Background | Integer | 1 | — |
| Show / Hide Background | Integer | 0 | — |
| Shape Outline | Float | 0.002 | — |
| Background Outline | Float | 0.002 | — |
| line2Separator | Float | — | — |
| Shape Scale | Float | 1.0 | — |
| line3Separator | Float | — | — |
| Color | Float | Default | — |
| Red | Float | 1.0 | — |
| Green | Float | 0.9 | — |
| Blue | Float | 0.6 | — |
| Alpha | Float | 1.0 | — |
| Separator_8 | Float | — | — |
| Red | Float | 0.079 | — |
| Green | Float | 0.079 | — |
| Blue | Float | 0.079 | — |
| Alpha | Float | 1.0 | — |
| Text Size | Float | 0.025 | — |
| Text Style | Float | Bold | — |
| Separator_4 | Float | — | — |
| Red | Float | 1.0 | — |
| Green | Float | 1 | — |
| Blue | Float | 1 | — |
| Alpha | Float | 1.0 | — |
| Filter | Float | Gaussian | — |
| Soft Edge | Float | 0 | — |
| Line Type | Float | Solid | — |
| Join Type | Float | 2.0 | — |
| Input | Image | — | — |
| JSON Point | Text | — | — |
| JSON Edge | Text | — | — |
| JSON Custom Shape | ScriptVal | — | — |
| JSON Text Groups | ScriptVal | — | — |
| JSON Custom Color | ScriptVal | — | — |
Example Connections
- Example 1
vJSONFromOBJ.Points -> vJSONCameraProjection.ArrayA
vJSONFromOBJ.Edges -> vJSONShapeRender.ArrayEdge
vJSONCameraProjection.Output -> vJSONShapeRender.JSONPoint
Background.Output -> vJSONShapeRender.Input
