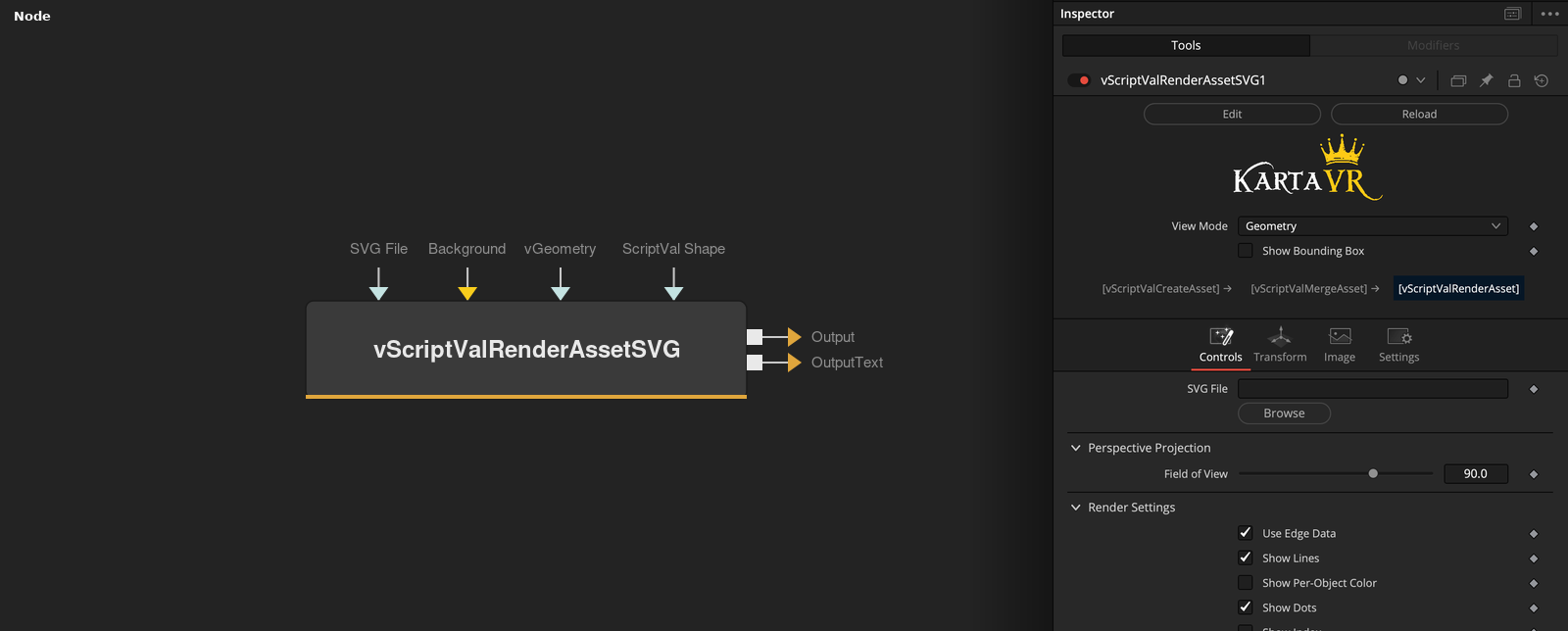

vScriptValRenderAssetSVG
Export an SVG wireframe from a ScriptVal Lua table of vGeometry mesh data Example Node Connections:
Mograph / ScriptValScriptValArrayJSON
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| View Mode | Integer | 0 | — |
| Show Bounding Box | Integer | 0 | — |
| SVG File | Text | — | — |
| Field of View | Float | 90.0 | — |
| Screen aspect ratio | Float | 16 / 9 | — |
+54 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Near clipping plane | Float | 0.1 | — |
| Far clipping plane | Float | 1000 | — |
| X Shear | Float | 0.0 | — |
| Y Shear | Float | 0.0 | — |
| Use Edge Data | Integer | 1 | — |
| Show Lines | Integer | 1 | — |
| Show Per-Object Color | Integer | 0.0 | — |
| Show Dots | Integer | 1 | — |
| Show Index | Integer | 0 | — |
| Line Width | Float | 0.005 | — |
| Dot Radius | Float | 0.0025 | — |
| Separator_2 | Float | — | — |
| Red | Float | 0.466 | — |
| Green | Float | 0.847 | — |
| Blue | Float | 0.588 | — |
| Alpha | Float | 1.0 | — |
| Dot Sides | Integer | 4 | — |
| Dot Width | Float | 0.0 | — |
| Hide Default Dots | Integer | 0 | — |
| Hide Custom Dots | Integer | 0 | — |
| Render Outline Dots | Integer | 0 | — |
| Scale Dots | Float | 1 | — |
| Separator_3 | Float | — | — |
| Red | Float | 1.0 | — |
| Green | Float | 1.0 | — |
| Blue | Float | 0.56 | — |
| Alpha | Float | 1.0 | — |
| Text Size | Float | 0.02 | — |
| Text Style | Float | Bold | — |
| Separator_4 | Float | — | — |
| Red | Float | 1.0 | — |
| Green | Float | 1 | — |
| Blue | Float | 1 | — |
| Alpha | Float | 1.0 | — |
| Separator_5 | Float | — | — |
| Fade Color | Float | 0.1 | — |
| Separator_6 | Float | — | — |
| Filter | Float | Gaussian | — |
| Soft Edge | Float | 0 | — |
| Line Type | Float | Solid | — |
| Join Type | Float | 2.0 | — |
| X Offset | Float | — | — |
| Y Offset | Float | — | — |
| Z Offset | Float | 1.0 | — |
| Rotation Order | Float | XYZ | — |
| X Rotation | Float | — | — |
| Y Rotation | Float | — | — |
| Z Rotation | Float | — | — |
| Lock X/Y | Integer | 1 | — |
| X Scale | Float | 1.0 | — |
| Y Scale | Float | 1.0 | — |
| Input | Image | — | — |
| vGeometry | ScriptVal | — | — |
| ScriptVal Shape | ScriptVal | — | — |
Example Connections
- Example 1
- Example 2
vScriptValFromOBJ.ScriptValPoints -> vScriptValCreateAsset.ScriptValPoints
vScriptValFromOBJ.ScriptValEdges -> vScriptValCreateAsset.ScriptValEdges
vScriptValFromOBJ.ScriptValUVs -> vScriptValCreateAsset.ScriptValUVs
vScriptValFromOBJ.ScriptValUVEdges -> vScriptValCreateAsset.ScriptValEdges
vScriptValCreateAsset.Output -> vScriptValMergeAsset.ScriptVal1
vScriptValMergeAsset.Output -> vScriptValRenderAssetSVG.vGeometry
Background.Output -> vScriptValRenderAssetSVG.Input
vMatrixCreateTRS.Output -> vScriptValLocatorAsset.Matrix
vScriptValLocatorAsset.Output -> vScriptValMergeAsset.ScriptVal
vScriptValMergeAsset.Output -> vScriptValRenderAssetSVG.vGeometry
Background.Output -> vScriptValRenderAssetSVG.Input
