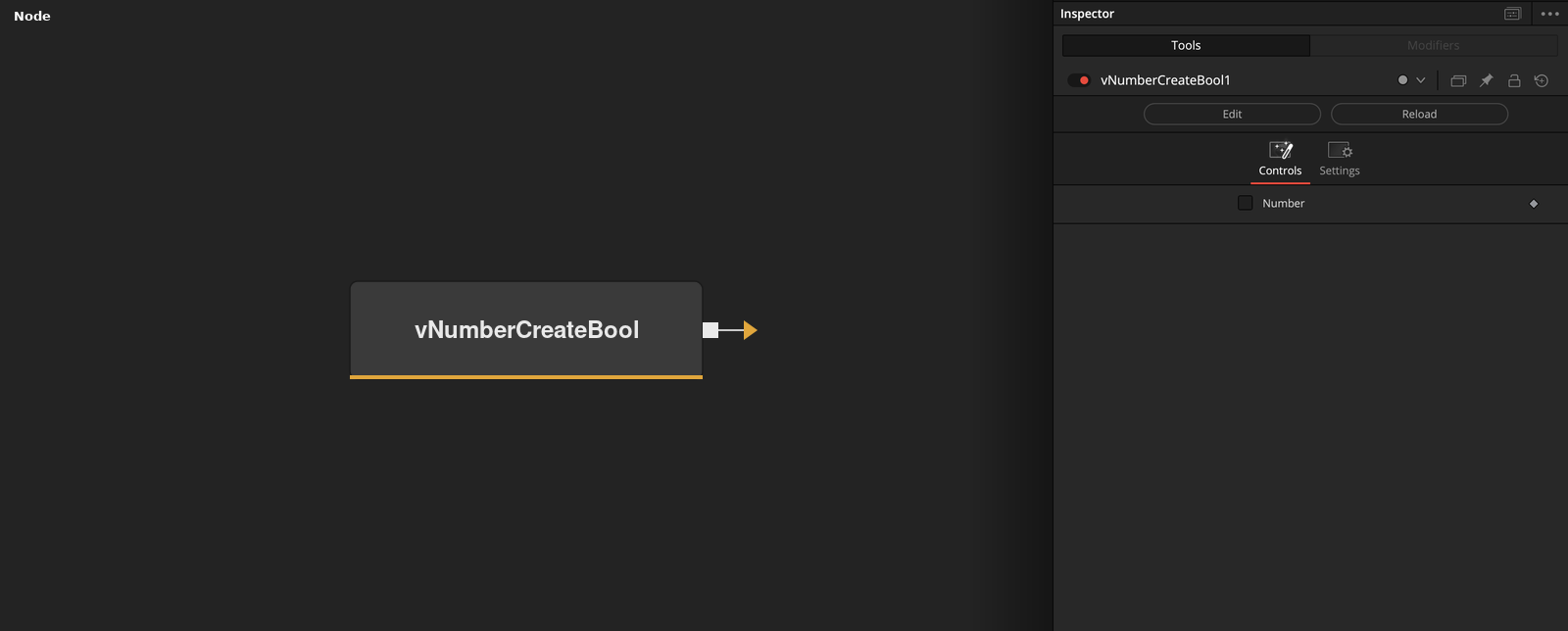

vNumberCreateBool
Returns a 0-1 range integer Fusion Number object This node uses a checkbox control to output a true (1) or false (0) logic state. Usage tip: This node's boolean like checkbox value can be used to drive a Switch node's "Which" control. This checkbox control makes it a single click operation in a macro node (MacroOperator or GroupOperator) to be able to toggle between an input1 / input2 connection. To do this you simply have to insert an vNumberAdd node, (that is set to increment the value up by 1), between the vNumberCreate node's output (0-1) logic state, and the Switch node: vNumberCreateBool.Output > vNumberAdd.Term1 > Switch.Which Node setting to change: vNumberAdd.Term2 = 1
Core / NumberNumber
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Number | Integer | 0 | — |
