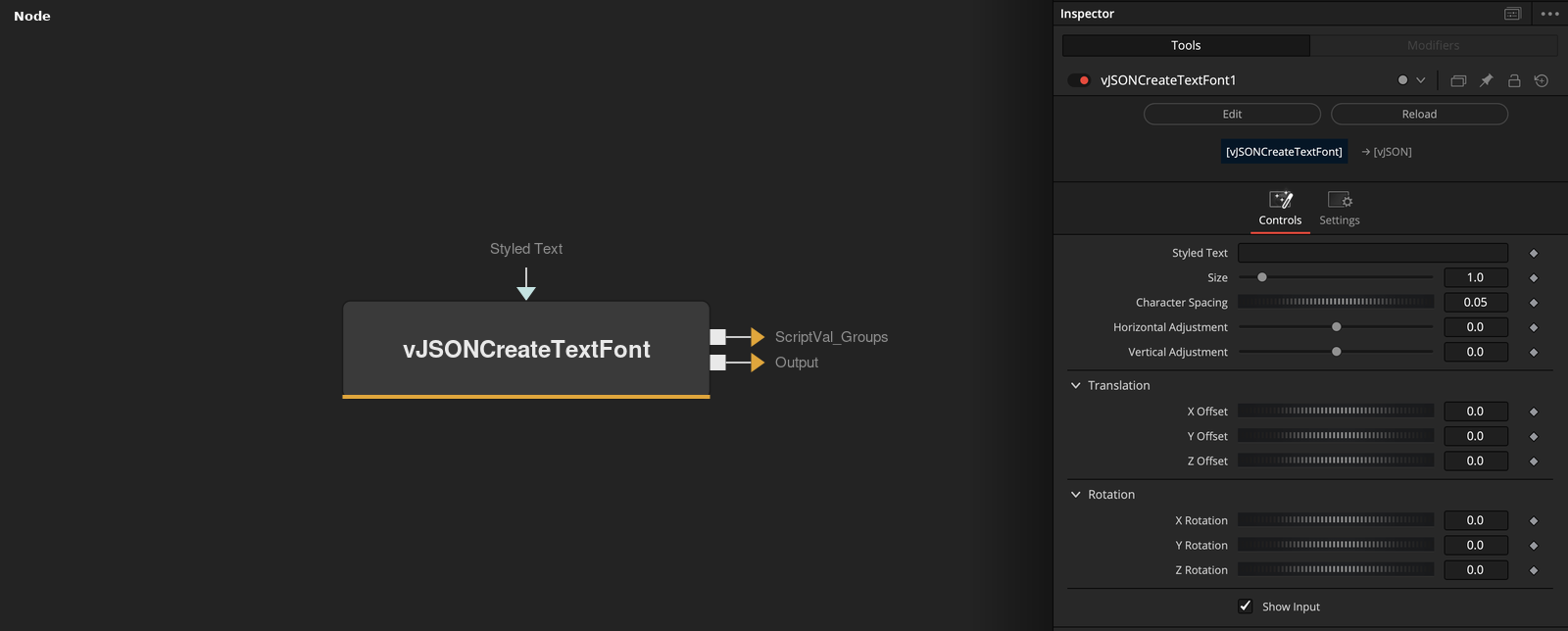

vJSONCreateTextFont
Creates Text Font
Mograph / JSONJSONScriptValArray
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Styled Text | Text | — | — |
| Size | Float | 1.0 | — |
| Character Spacing | Float | 0.05 | — |
| line Spacing | Float | — | — |
| Letter Case | Integer | ORIGINAL | — |
+16 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Justification | Integer | Left | — |
| Horizontal Adjustment | Float | 0.0 | — |
| Vertical Adjustment | Float | 0.0 | — |
| X Offset | Float | — | — |
| Y Offset | Float | — | — |
| Z Offset | Float | 0.0 | — |
| Rotation Order | Float | XYZ | — |
| X Rotation | Float | — | — |
| Y Rotation | Float | — | — |
| Z Rotation | Float | — | — |
| Lock X/Y | Integer | 1 | — |
| X Scale | Float | 1.0 | — |
| Y Scale | Float | 1.0 | — |
| X Shear | Float | 0.0 | — |
| Y Shear | Float | 0.0 | — |
| Show Input | Integer | 1.0 | — |
Example Connections
- Example 1
vJSONCreateTextFont.Output -> vJSONCameraProjection.ArrayA
vJSONCameraProjection.Output -> vJSONShapeRender.JSONPoint
Background.Output -> vJSONShapeRender.Input
