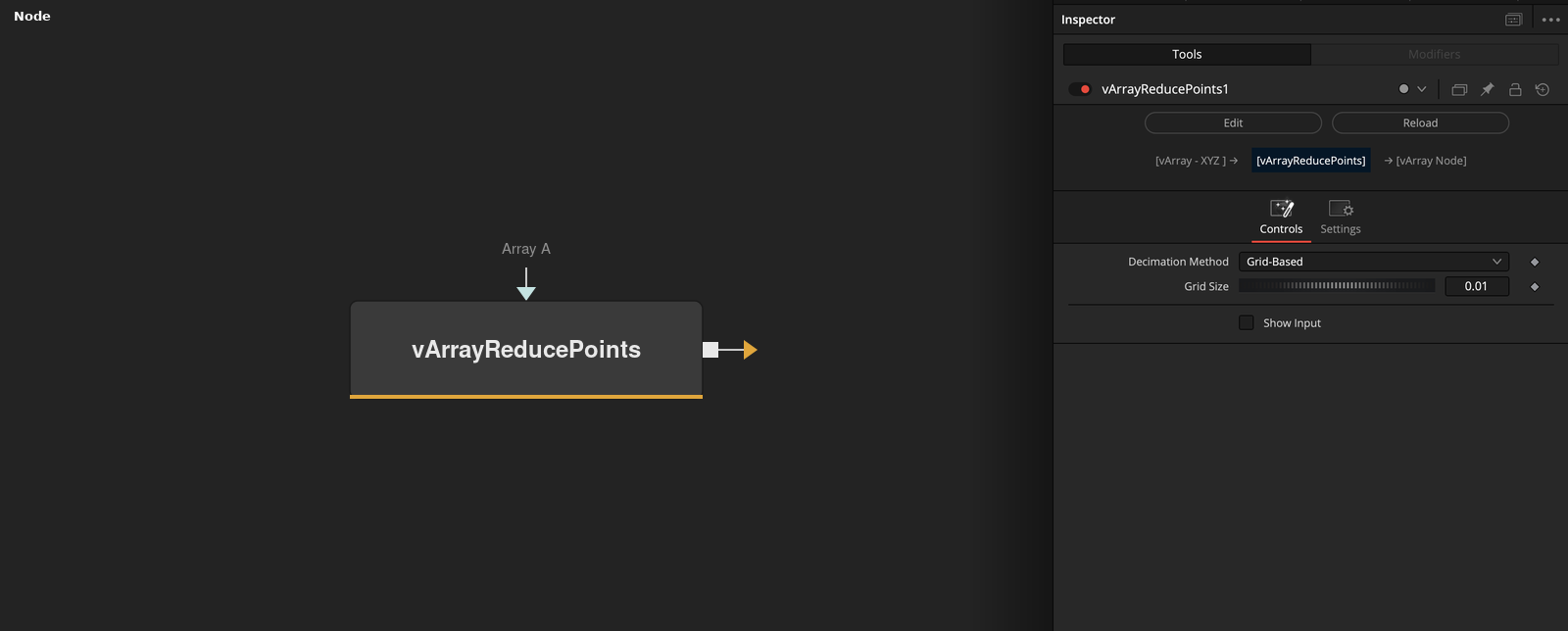

vArrayReducePoints
Reduce points Operations on an Array Decimation Method options include: - Grid-Based - Random Sampling - Curvature-Based (SLOW)
Mograph / ArrayArrayScriptValJSON
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Decimation Method | Integer | Grid-Based | — |
| Grid Size | Float | 0.01 | — |
| Target Count | Float | 3.0 | — |
| Neighborhood Size | Float | 0.2 | — |
| line4Separator | Float | — | — |
+2 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Show Input | Integer | 0.0 | — |
| Array A | DATATYPE | — | — |
Example Connections
- Example 1
vArrayPointsOnSphere.Output -> vArrayReducePoints.ArrayA
vArrayReducePoints.Output -> vArrayCameraProjection.ArrayA
vArrayCameraProjection.Output -> vArrayShapeRender.ArrayPoint
Background.Output -> vArrayShapeRender.Input
