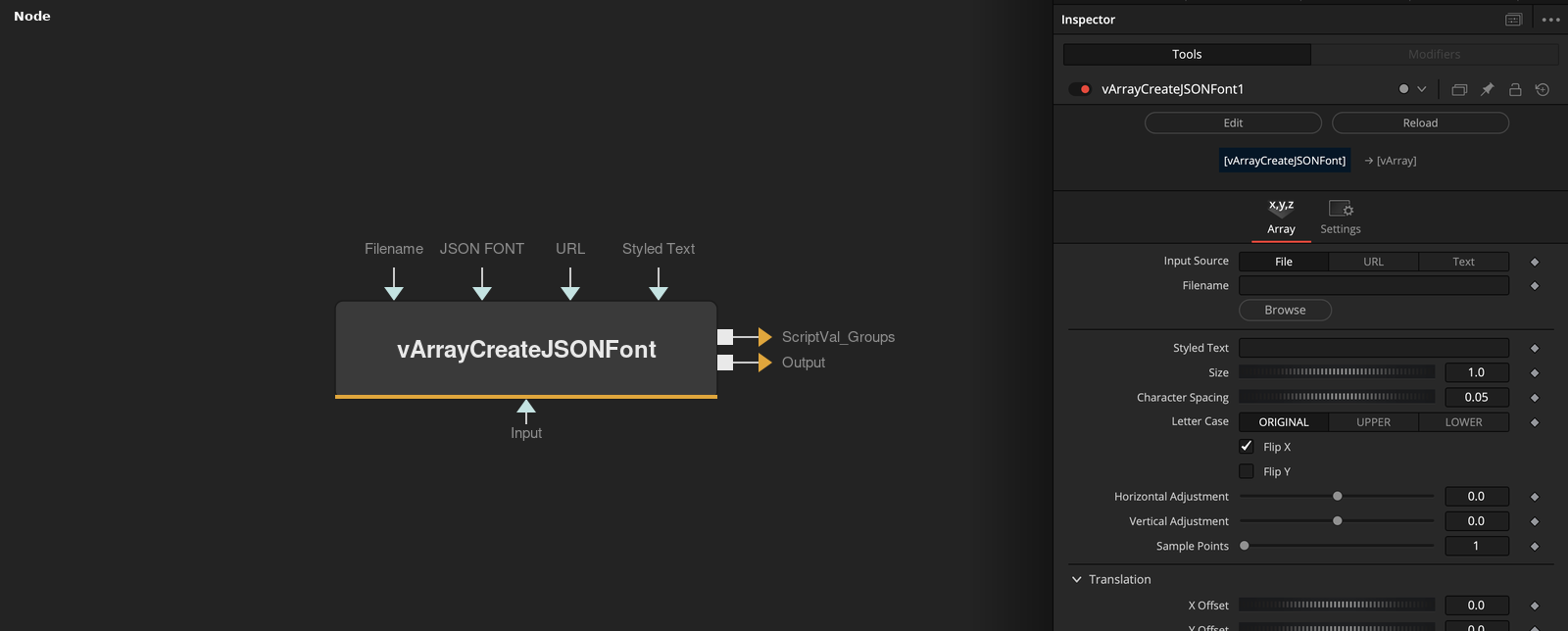

vArrayCreateJSONFont
Generates a JSON array-based font
Mograph / ArrayArrayScriptValJSON
Parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Input Source | Integer | File | — |
| Filename | Text | — | — |
| URL | Text | — | — |
| Input | Text | — | — |
| UISeparator1 | Float | — | — |
+23 more parameters
| Parameter | Type | Default | Description |
|---|---|---|---|
| Styled Text | Text | — | — |
| Size | Float | 1.0 | — |
| Character Spacing | Float | 0.05 | — |
| line Spacing | Float | — | — |
| Letter Case | Integer | ORIGINAL | — |
| Flip X | Integer | 1.0 | — |
| Flip Y | Integer | 0.0 | — |
| Justification | Integer | Left | — |
| Horizontal Adjustment | Float | 0.0 | — |
| Vertical Adjustment | Float | 0.0 | — |
| Sample Points | Integer | 1 | — |
| X Offset | Float | — | — |
| Y Offset | Float | — | — |
| Z Offset | Float | 0.0 | — |
| Rotation Order | Float | XYZ | — |
| X Rotation | Float | — | — |
| Y Rotation | Float | — | — |
| Z Rotation | Float | — | — |
| Lock X/Y | Integer | 1 | — |
| X Scale | Float | 1.0 | — |
| Y Scale | Float | 1.0 | — |
| Show Input | Integer | 1.0 | — |
| JSON FONT | Text | — | — |
Example Connections
- Example 1
vJSONFromFile.Output -> vArrayCreateJSONFont.JSON_Font
vArrayCreateJSONFont.Output -> vArrayCameraProjection.ArrayA
vArrayCreateJSONFont.ScriptVal_Groups -> vArrayShapeRender.ArrayGroups
vArrayCameraProjection.Output -> vArrayShapeRender.ArrayPoint
Background.Output -> vArrayShapeRender.Input
